Thailand 1500kg AGV Transfer Vehicle For Lifting Pallet
A customer from Thailand ordered a 1500kg AGV transfer vehicle. This AGV uses laser navigation and is used for pallet handling operations in the workshop. It has been successfully delivered to our customer's factory and is currently running well.

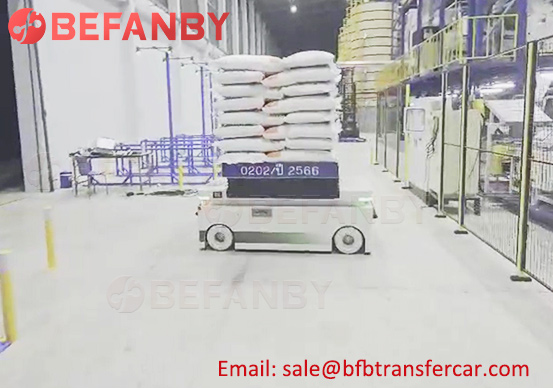

Below is the AGV operation video sent back to us by our customer.
This article will give a detailed introduction to this project from before and after delivery, application conditions, and technical parameters.
Factory VS Work Site
Application Showing(More details also can check the AGV Product)
The first AGV ordered by our Thai customer will be used in the robot production line. The ground is concrete and has no slope. The main working conditions are: transporting finished product pallets to the warehouse, and then transporting the pallets from the warehouse to the shipping location for one cycle. No more than five minutes, and working hours need to meet 8 hours a day, 5 days a week. The size of the pallet is 1400*1200*150mm, and the free space of the pallet support frame is 1250*1800*750mm. Since the agv must be able to lurk under the pallet, the agv must meet the lifting function, and the lifting and lowering height is 300mm. Based on the route map provided by the customer, we finally recommend laser navigation as the navigation method.
Technical Parameters
Model: AGV
Capacity: 1500kg
Table Size: 1900*1100*700mm
Lifting Height: 300mm
Power: Lithium Battery
Charger: Automated charge
Running Speed: 40m/min
Navigation: Laser
About the heavy duty agv, BEFANBY have rich project experience despite on domestic or foreign, All can customized on demand once you tell us your detailed request. We provided freely material handling solution for you.
