1.5T Mecanum Wheel Agv Pallet Mover
1.5T Mecanum Wheel Agv Pallet Mover
1.5T Mecanum Wheel Agv Pallet Mover
1.5T Mecanum Wheel Agv Pallet Mover
1.5T Mecanum Wheel Agv Pallet Mover
1.5T Mecanum Wheel Agv Pallet Mover
1.5T Mecanum Wheel Agv Pallet Mover
1.5T Mecanum Wheel Agv Pallet Mover
1.5T Mecanum Wheel Agv Pallet Mover

1.5T Mecanum Wheel Agv Pallet Mover

1 set 1.5T mecanum wheel agv was exported to Thailand, the agv is laser navigation, which is for moving pallet from one station to another.

Warranty: 2 Years
Capacity: 1-1,500 Tons
Certificate: CE SGS ISO9001, SASO
OEM: Support
Navigantion: Laser Navigation Method
Advantage: Rich Experience For AGV Design And Exportation
Project Introduce

1 set 1.5T mecanum wheel agv was exported to Thailand, the agv is laser navigation, which is for moving pallet from one station to another. After provide agv handling solution, and the introduction of our company's strength and project experience, and the customers coming to our company to visit the factory, they expressed great confidence in our company and believed that we would have a good cooperation.

Our Thailand customer sent us an AGV overview map. From the attachment, you can see the customer's specific working conditions:

1. They will use AGV to receive empty pallets from the pallet warehouse for the robot production line, then transport the finished pallets from the robot production line to the inventory location, and finally transport the finished pallets from the inventory location to the exit station.

2. The size of the pallet is 1400*1200*150mm, and the free space of the pallet support frame is 1250*1800*750mm. The agv must pass through from below, so the agv must also meet the lifting function.

3. AGV needs to meet the lifting working height of 300mm.

4. AGV working hours need to meet 8 hours a day, 5 days a week, and one cycle should not exceed 5 minutes.

5. The AGV working ground is concrete and has no slope.

6. AGV must meet the automatic charging function

7. Navigation method adopts laser navigation

After back-and-forth confirmation with the customer, we relied on our experience in the design and production of heavy duty AGVs to provide the customer with an economical handling solution. The customers are also very satisfied. They were still hesitant about our company's project experience before, but after the introduction of BEFANBY company's strength and project experience, and the customers coming to our company to visit the factory, they expressed great confidence in our company and believed that we would have A great collaboration.



Mecanum Wheel Laser Navigation AGV Introduce

Mecanum Laser Navigation AGV (Automated Guided Vehicle) is a robot that uses laser navigation technology to achieve automated transportation. This kind of AGV uses a laser scanner to obtain environmental information, processes and analyzes it through a built-in software system, and determines its own position and heading, thereby achieving precise navigation and autonomous movement. Mecanum laser navigation AGV can be widely used in manufacturing, logistics, warehousing and other fields to improve logistics efficiency and reduce labor costs.

Mecanum wheel laser navigation AGV has the following characteristics:

1. High accuracy: Laser navigation technology has very high positioning accuracy and stability, which can ensure the accuracy and safety of AGV during transportation.

2. Strong flexibility: Mecanum wheel laser navigation AGV can adapt to various complex environments and scenarios, such as warehouses, workshops, production lines, etc., and can also perform path planning and scheduling as needed.

3. High degree of automation: Mecanum wheel laser navigation AGV can complete handling tasks independently, reducing manual intervention and operations, and improving production efficiency and logistics efficiency.

4. Strong scalability: Mecanum wheel laser navigation AGV can be upgraded and modified to achieve more functions and features, such as increasing load, increasing speed, optimizing paths, etc.

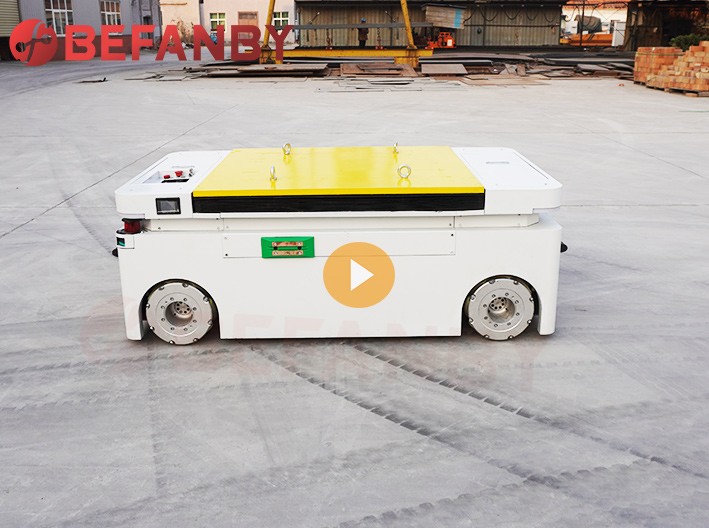

1.5t mecanum wheel lift agv with laser navigation

Product parameters
Technical Parameter Of Mecanum Wheel Agv Pallet Mover
Model QY Remark
QTY 1 Set
Exported Country Thailand
Solution Profile Production line Moving Pallet
Capacity 1.5T Custom Capacity over 1,500T
Table Size 1900*1100*700mm Box Girder Structure
Lifting Height 300mm
Power Supply Lithium Battery
Navigation Method Laser
Running Speed 0-40m/min
Wheel Type Mecanum Wheel
Operation PLC Control+ Screen Operation
Charge Method Automated Charge
Remark 1. Lithium Battery
2.Mecanum Wheel
3. Lifting
4. Customized Color
