BEFANBY manufacture the ferry transfer cart, Its running direction and the running direction of the rail transfer cart to be ferried are crossed. Because of its characteristics, it generally travels in a pit.

Warranty: 2 Years
Capacity: 1-1,500 tons
Certificate: CE SGS ISO9001, SASO
OEM: Support
Vulnerable Parts: Give as gifts
Advantage: Peculiar set-up makes the transfer cart save cost and operate more conveniently
Product Description

BEFANBY manufacture the ferry transfer cart, Its running direction and the running direction of the rail transfer cart to be ferried are crossed. Because of its characteristics, it generally travels in a pit. Its platform is flush with the ground. The trolley travels to a certain position. The track on the platform and the track on the ground can be accurately connected, which is equivalent to a mobile platform. One end of the trolley is designed with an on-board operation platform, so that the operator can control any rail flat car on the train, saving human resources.

The cost is relatively low, the operation is safe and convenient, and it can effectively solve the problem of material transportation caused by layout restrictions in the production workshop.

Design Principle

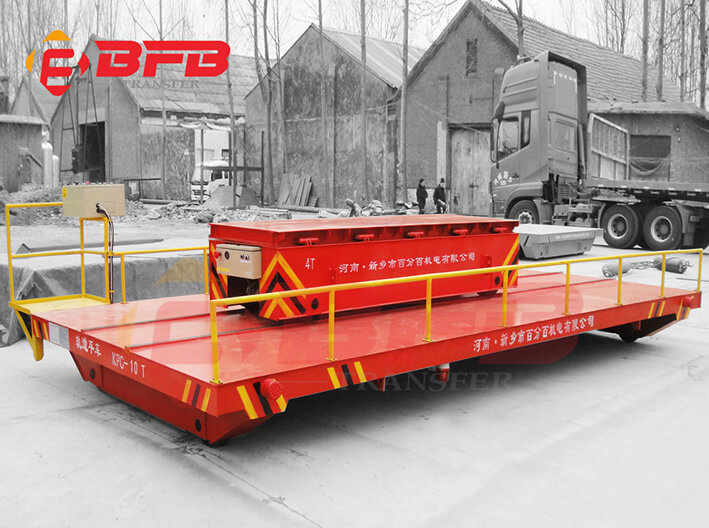

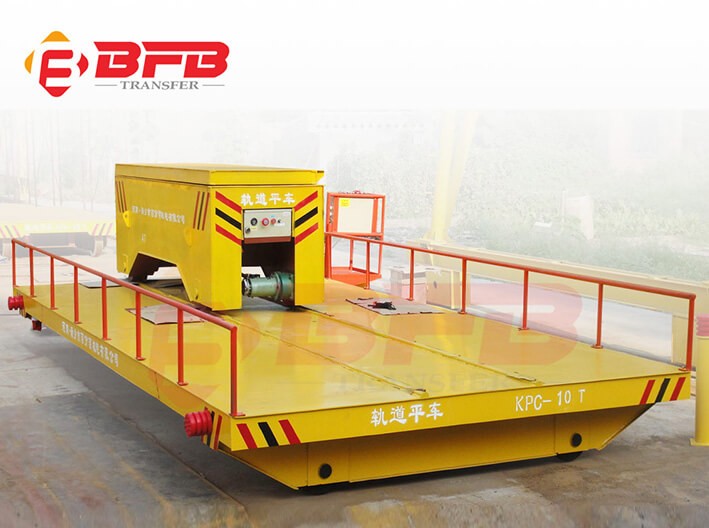

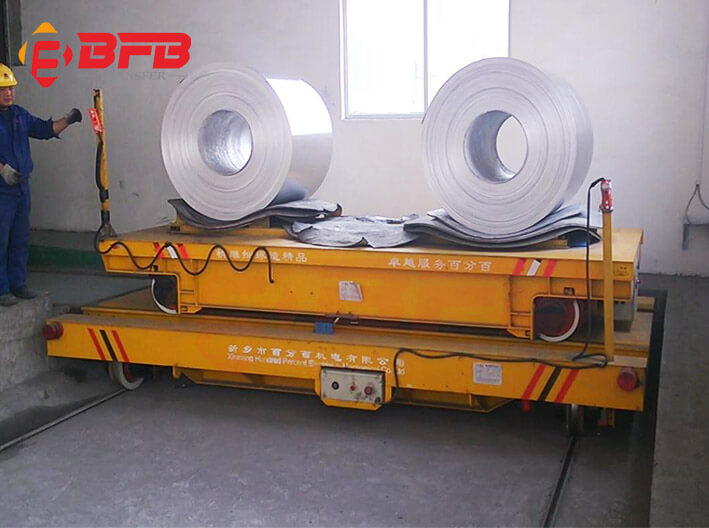

The ferry transfer cart is made of two carts.The transfer cart on the ground is used for ferry .this kind of cart is usually designed to go across a broad trench.The surface under the ground is parallel with the ground.The surface of the cart below is equipped with rails to connect the different rail on the ground so that the cart above can transport the materials to the different parallel rails.

Main Feature:

1.Customized load capacity from 1 ton to 1,500 tons
2.Optional Table Size, Platform Structure
3.Optional power source(Conductor rail/ battery/ cable/ diesel powered)
4.Running on the rails(Recommend as per the load capacity )
5.Box girder structure cart frame(nondeformable, Unique design)
6.Customized system(lifting, weighing, titling, plc, etc.)
7.Optional Control System (Radio Control / Remote Controller / Cabin)
8.Safety System(LED flashing lights, Sound acoustic devices, E-stop, Dead man stop, Buffer, etc.)
9.Speed up to 10 Km/h
10.Well known components brand.



Product parameters
Technical Parameter Of Ferry Transfer Cart
Model KPC KPX Remark
QTY 1 SET 1 SET
Solution Profile Workshop Traverser
Load Capacity (T) 4.3 3.5T Custom Capacity over 1,000T
Table Size (mm) 1600(L)*1400(W)*900(H) 1600(L)*1400(W)*900(H) Box Girder Structure
Lifting Height(mm)   350
Rail Inner Gauge (mm) 1160 1160
Power Supply Busbar Power Battery Power
Motor Power(KW) 2*0.8KW 2*0.5KW
Motor AC Motor DC Motor  AC Motor Support Frequency Charger/ DC Motor Soft Start
Running Speed(m/min) 0-20 0-20 Adjusted Speed
Running Distance(m) 50 10
Wheel Dia.(mm) 200 200 ZG55 Material
Power AC380V,50HZ DC 36V
Recommend Rail  P18 P18
Color Yellow Yellow Customized Color
Operation Type Hand Pendant + Remote Control
Special Design 1. lifting system
2. Cross Rail
3. PLC Control
