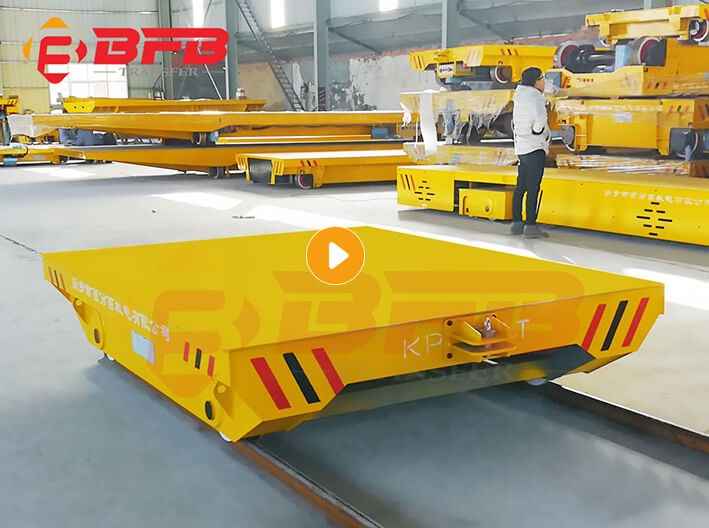

Manual transfer cart can be towed by pulling device run on rails, which is our common and patent product, the transfer cart can be towed by manpower or towed by other transfer trolleys including the forklift, winch, trailer and so on.

Warranty: 2 Years
Capacity: 1-1,500 tons
Certificate: CE SGS ISO9001, SASO
Vulnerable Parts: Give as gifts
Product Description

Manual transfer cart can be towed by pulling device run on rails, which is our common and patent product, the transfer cart can be towed by manpower or towed by other transfer trolleys including the forklift, winch, trailer and so on. and the manual transfer cart also can be towed together, which can not only transfer more material but also save the cost with competitive price, especially the large capacity, BEFANBY have rich experience to design with simple structure compared with other suppliers. Too many towing no power rail cart has been customized according to clients' requirement. According to the working site, you can choose the track or trackless transfer cart to work in with the tractor.

Design Principle :

In order to meet industrial handling demands, BEFANBY design the kind of manual rail cart, which not only make the handling more easier and safer, also can realize turning easily. What’s more, the safe protection has been done in many aspects, which not only promote safety factor but also get a good assessment from our customers around the world.



Applications of no powered rail flat cart :

This no power transfer cart can be applied in transfer heavy materials or equipment in many areas, such as foundry factory, warehouse, steel plant, aluminum factory, plastic pipes factory, metallurgy, shipyard, steel mills, coal, mining and processing industries, etc.

  • no powered rail transfer cart

    foundry factory

  • no powered rail flat cart

    warehouse

  • manual rail transfer cart

    steel plant

  • coil rail transfer cart

    aluminum factory

  • towing rail transfer cart

    plastic pipes factory

  • hand operated rail transfer cart

    metallurgy

  • towing rail transfer cart

    shipyard

  • towed rail transfer cart

    coal

  • Winch towing rail transfer cart

    mining

  • no powered rail transfer car

    processing industries

Parts
no powered rail transfer trolley



Product parameters
Technical Parameters for KP Series Manual Transfer Carts
Model KP-2T KP-5T KP-10T KP-16T KP-20T KP-25T KP-30T KP-40T KP-50T KP-63T KP-80T KP-100T KP-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 450 450 500 500 550 600 600 650 650 750 800 850 1200
 Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai lnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600  Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.3 3.3 3.8 5 5.5 6 6.3 7.2 7.6 10.3 12.1 13.9 26
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100
