There will be a greater danger if large-tonnage molds are transported by crane, In order to reduce the danger, the die transfer cart was born.

Warranty: 2 Years
Capacity: 1-1,500 tons
Certificate: CE SGS ISO9001, SASO
OEM: Support
Vulnerable Parts: Give as gifts
Advantage: peculiar set-up makes the transfer cart save cost and operate more conveniently
Product Description

There will be a greater danger if large-tonnage molds are transported by crane, In order to reduce the danger, the die transfer cart was born.

The mold is hoisted to the transfer cart by a crane. In order to prevent the mold from sliding on the die transfer cart, a rubber plate is laid on the table and the mold is transported to the corresponding station by the transfer cart. What’s more, the transfer cart is with its own safety monitoring device, it will automatically stop when it encounters a pedestrian or an obstacle, and the safety is reliable.

 These transfer cart is widely used in the processing line of punching, pouring, cold heading, extrusion, powder metallurgy parts pressing, pressure casting, and engineering plastics, rubber, ceramics and other products of the compression molding or injection molding. Our die transport products are operated on rails or travel on cement floor, and include die transfer cart, die transport trolley, die rail cart, trackless cart, battery operated carriage, electric flat vehicle, industrial trailer, motorized railway bogie, steering platform table etc.

Main Feature:

1.Customized capacity from 1 ton to 1,500 tons
2.Optional Table Size
3.Optional power source
4.Optional running method(rails or no rails)
5.Robust Sturdy Frame(Box girder structure cart frame)
6.Anti-explosion, anti-high temperature, anti-water, anti-dust, etc
7.Customized system(lifting, weighing, titling, climbing, ferry, plc, etc.)
8.Optional Control System (Operation handle / Remote Controller / Cabin)
9.Safety System(LED flashing lights, Sound acoustic devices, E-stop, Dead man stop, Buffer, etc.)
10.Speed up to 10 Km/h
11.Well known components brand.
The engineering team in BEFANBY will always suggest the optimal guiding method based on your layout and requests to offer you the best product with the best price possible.



Product parameters
Technical Parameter Of Die Transfer Cart

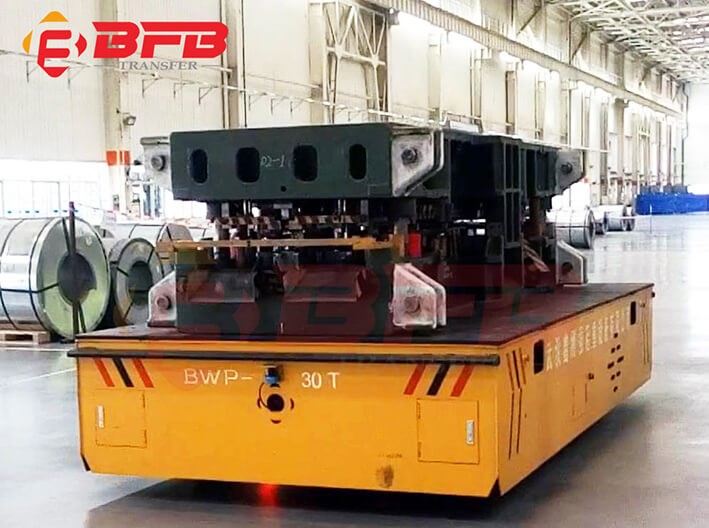

Model BWP Remark
QTY 1 SET
Solution Profile The transfer cart is delivered to Wuhan for die mold handling, the table is covered with rubber pads
Load Capacity (T) 30 Custom Capacity over 1,000T
Table Size (mm) 4500(L)*2300(W)*850(H) Box Girder Structure
Power Supply Battery Power Intelligent Charger are equipped
Motor Power(KW) 2*5.5
Motor DC Motor Soft Start
Running Speed(m/min) 0-30 Adjusted Speed
BatteryPower(V) DC48
Wheel Dia.(mm) 450 ZG55+PU Material
Sensor Stop(pcs) 2
Color Yellow Customized Color
Operation Type Hand Pendant + Remote Control
Cutsomized Many transfer carts solution had been designed for mold handling, Consult us for more solutions and details
