Automated Guided Vehicle
Automated Guided Vehicle
Automated Guided Vehicle
Automated Guided Vehicle
Automated Guided Vehicle
Automated Guided Vehicle
Automated Guided Vehicle
Automated Guided Vehicle
Automated Guided Vehicle

Automated Guided Vehicle

The automated guided vehicle is a technological innovation of trackless transfer cart, which can realize Intelligent workshop material handling operations in all heavy industries.

Warranty: 2 Years
Capacity: 1-1,500 tons
Certificate: CE SGS ISO9001, SASO
Delivery Time: 30-40 working days
Product Description

The automated guided vehicle is a technological innovation of trackless transfer cart, which can realize Intelligent workshop material handling operations in all heavy industries.

BEFANBY AGVs have the following guiding systems:

Wire-guided. The AGV follows a route marked by a wire buried on the floor. This wire generates a magnetic field that guides the AGV on its route.

Magnetic-guided. Improvement of wire-guiding. The magnetic field is generated by a magnet instead of a wire, which avoids the usage of electricity on the wire.

Optical guided. The AGV follows a route that marked by a painted line, which is detected by the catadioptic installed on the AGV. Easier to install and modify than wire-guiding.

Artificial vision. The AGV uses artificial vision to recognize a tire of catadioptic mirror, calculate the deviation between the marked route and the AGV and correcting it instantly.

 Laser. The AGV recognizes its surroundings using a rotational laser that is reflected in a series of reflectors in order to determine its position on a map of the factory previously loaded in its memory. This method offers the easiest way to modify a route as an advantage.

The engineering team in BEFANBY will always suggest the optimal guiding method based on your layout and requests to offer you the best product with the best price possible.

Main Feature:

1.Customized capacity from 1 ton to 1500 tons
2.Battery powered(Optional power source)
3.Robust Sturdy Frame 4.Steering: standard and omnidirectional (90°, diagonal/crab, carousel/360°, front and/or rear, round a point)
5.Lithium Battery and Intelligent Charger
6.Low battery alarm device. It will alarm, when the battery power is too low.
7.Any kind of wheels (Steering Wheel or Mecanum Wheel)
8.Anti-explosion, anti-high temperature, anti-water, anti-dust, etc
9.Working environment: both indoor and outdoor
10.Customized system(lifting, weighing, titling, climbing,etc.)
11.Safety System(LED flashing lights, Sound acoustic devices, E-stop, Dead man stop, Buffer, etc.)
12.Speed up to 10 Km/h
13.Well known components brand.

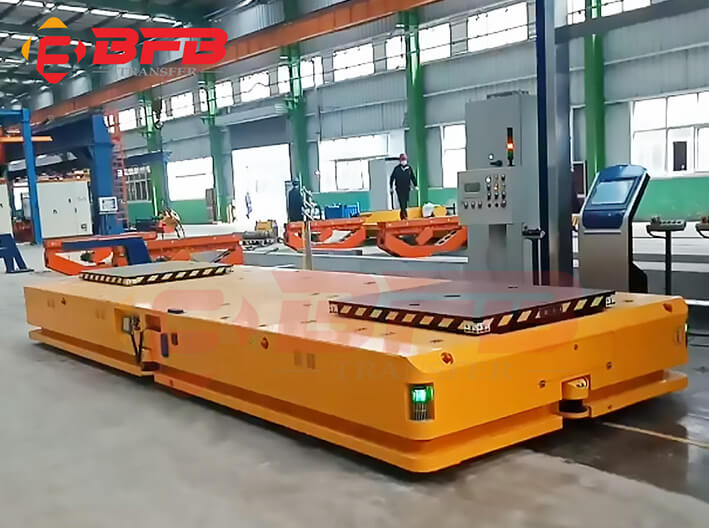

Heavy Duty AGV Application

heavy load agv



More Solution Introduction, You also can enter the Cases Page.



Product parameters
Capacity(T) 2 5 10 20 30 40 50





Table Size

Length(MM) 2000 2500 3000 3500 4000 5000 5500
Width(MM) 1500 2000 2000 2200 2200 2200 2500
Height(MM) 450 550 600 800 1000 1200 1300
Navigation Type Magnetic/Laser/Natural/QR Code
Stop Accuracy ±10
Wheel Dia.(MM) 200 280 350 410 500 500 550
Voltage(V) 48 48 48 72 72 72 72
Power Lithium Battey
Charging Type Manual Charging / Automatic Charging
Charging Time Fast Charging Support
Climbing
Running Forward/Backward/Horizontal Movement/Rotating/Turning
Safe Device Alarm System/Multiple Snti-Collision Detection/Safety Touch Edge/Emergency Stop/Safety Warning Device/Sensor Stop
Communication Method WIFI/4G/5G/Bluetooth Support
Electrostatic Discharge Yes
Customized Function Lifting, Rolling, Towing, etc.
Remark The above is for reference, all can be customized on demand
