30 Ton Steerable Trackless Transfer Carriage For Steel Structure Transportation On Concrete Floor

March 14, 2016

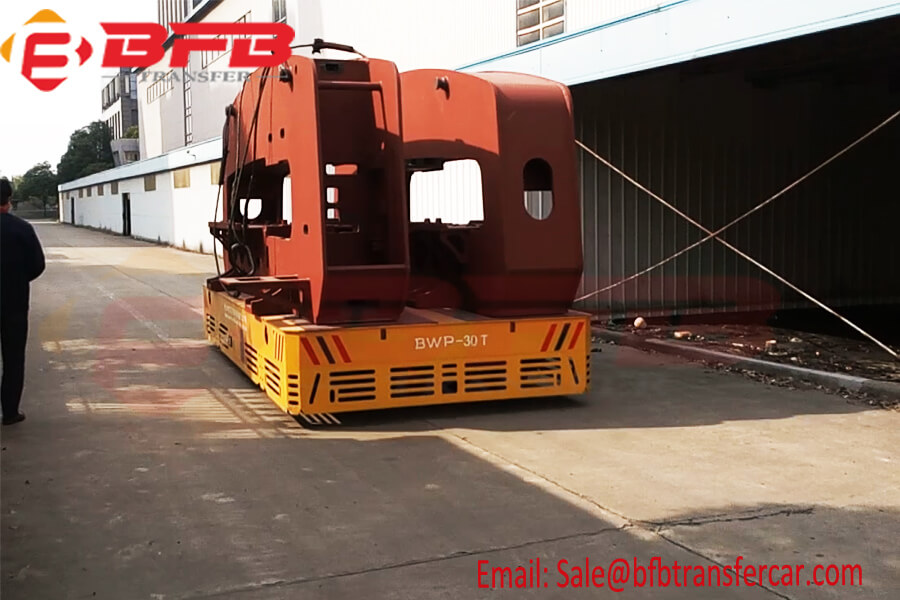

30 Ton Steerable Trackless Transfer Carriage For Steel Structure Transportation On Concrete Floor

1 set steerable trackless transfer carriage has been delivered to Jiangsu province for steel structure transportation, the steerable trackless transfer carriage run on the concrete floor from outdoor to indoor handling, so the battery type are recommend. It is no limited running distance, and the battery type is no limited cable compared with other cable powered, so that it can worked more convenience. Last but not least, the maintenance free battery is chosen to exported to make the power more convenient.

Technical Parameter of Trackless Transfer Carriage

1. Model: BWP - 30T

2. Capacity: 30 ton

3. Table Size: 5000*2500*700mm

4. Power: Battery Power

5. Charger: Intelligent Charger

6. Motor:DC Motor, Soft Start

7. Wheel Dia.:450mm

8. Running Speed: 0-20m/min

9. Special Function: The transfer carriage can run when met 15 degree slope on site

10. Control Ways: Hand Pendant + Remote Control
