BEFANBY Customized 5Ton Automated Electric Transfer Cart With Magnetic Strip Navigation For Material Handling
Project Name: BEFANBY Customized 5Ton Automated Electric Transfer Cart With Magnetic Strip Navigation For Material Handling
Project Background:
In modern factories, material transfer between production lines increasingly relies on automated equipment. This is particularly true for heavy materials such as paper rolls, raw materials, and large workpieces; traditional manual handling is not only labor-intensive but also fails to meet the efficiency demands of continuous production.
Recently, a manufacturing enterprise commissioned BEFANBY to customize a 5-ton automated electric transfer cart to handle internal material transport, based on the specific needs of their production lines. Throughout the project—from initial requirements discussion to finalization of the solution—BEFANBY’s technical team maintained close communication with the client, tailoring the equipment design to the specific site environment and transport routes.
Solution:
When the client approached BEFANBY, they clearly stated their goal: to reduce manual handling and achieve automated material transfer between different production areas.
Taking into account the workshop environment and transport routes provided by the client, BEFANBY’s technical team focused on key factors such as material weight, transport distance, operating paths, turning space, and on-site safety requirements.
The client required the equipment to operate automatically along fixed routes while maintaining good steering flexibility. After consultation, both parties agreed on a solution featuring a 5-ton automated electric transfer cart guided by magnetic strip navigation.
Technical Parameters:
Model: AGV
Quantity: 1 unit

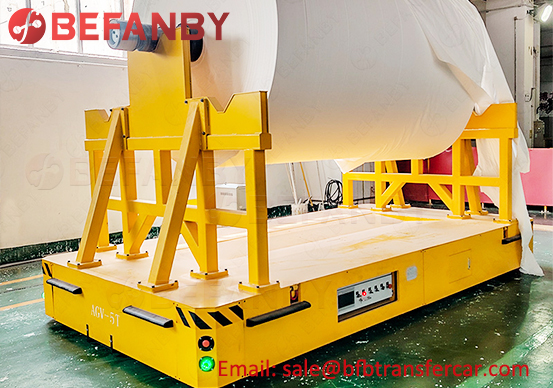

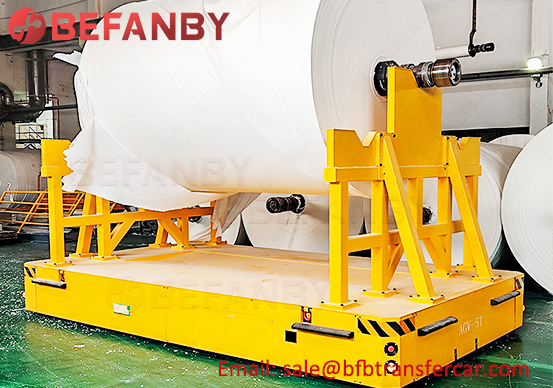

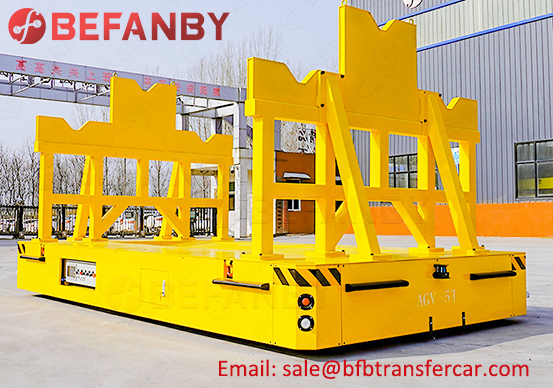

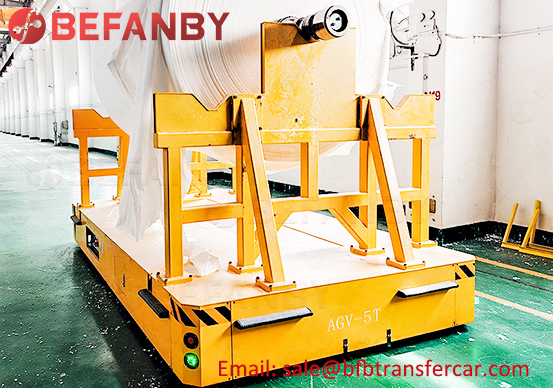

Load Capacity: 5 tons
Platform Dimensions: 4500 x 2400 x 550 mm
Operating Speed: 0–30 m/min
Customizable: Dimensions/Color
Product Advantages:
## Magnetic Strip Navigation for Automated Transport
To meet the client's specific needs, the electric transfer cart utilizes magnetic strip navigation, following a pre-set magnetic path to guide the vehicle automatically.
Compared to manual operation, magnetic strip navigation reduces the need for human intervention, allowing the equipment to complete material transfers along a set route—making it ideal for repetitive transport tasks along fixed paths within the factory.
Additionally, BEFANBY tailored the navigation system to the client's specific on-site routes, ensuring seamless integration of the equipment into existing production workflows.
## Flexible Turning for Complex Workshop Environments
The client's workshop layout involves multiple turns and the need to transport materials between various workstations; therefore, flexibility was a crucial requirement for this custom solution. BEFANBY has optimized the vehicle's steering system, enabling flexible turning and movement in both longitudinal and lateral directions, allowing for efficient material transfer even within the confined spaces of a workshop.
This flexible operational capability reduces the need for manual assistance and enhances the efficiency of material flow between production lines.
## Stable 5-Ton Load Capacity for Heavy Material Transport
With a rated load capacity of 5 tons, the equipment meets the customer's daily requirements for transporting heavy materials within the factory.
To accommodate the customer's need for long-term, high-frequency usage, BEFANBY has carefully engineered the chassis structure, drive system, and control system, ensuring stable operation even under heavy loads.
Primarily used for internal material transfer, the equipment effectively reduces the physical strain of manual handling and boosts workshop logistics efficiency.
## Automatic Stop Upon Detecting Personnel for Enhanced Operational Safety
Safety is always a top priority for customers when operating automated equipment.
At the customer's request, BEFANBY equipped this 5-ton automated electric transfer cart with an automatic stop mechanism. If the system detects a person entering the safety zone during operation, it immediately halts the vehicle to minimize the risk of collision.
The combination of automatic navigation and safety protection ensures safe and reliable operation in factory environments where personnel and vehicles work in close proximity.
## BEFANBY: Comprehensive Solutions from Consultation to Customization
This 5-ton automated electric transfer cart project represents more than just the supply of standard equipment; it is the result of a solution tailored by BEFANBY to the customer's specific operational conditions.
From the initial assessment of requirements—including travel routes, load capacities, and navigation methods—through to safety configurations and manufacturing, BEFANBY maintained constant communication with the customer, continuously refining the plan based on actual site conditions.
Ultimately, the 5-ton automated electric transfer cart was successfully deployed for material transfer at the customer's factory. It delivers automatic navigation, flexible maneuvering, stable load handling, and safe operation, effectively reducing manual labor requirements and increasing production logistics efficiency.
Contact Us:
BEFANBY possesses extensive experience in the R&D and manufacturing of electric transfer carts. We customize automated AGV transfer carts, rail-guided RGV transfer carts, trackless transfer carts, and various non-standard material handling equipment tailored to specific production environments and handling requirements, delivering efficient, safe, and reliable automated handling solutions. Please contact us to learn more about our customized handling solutions!
