Transfer Cart On Port

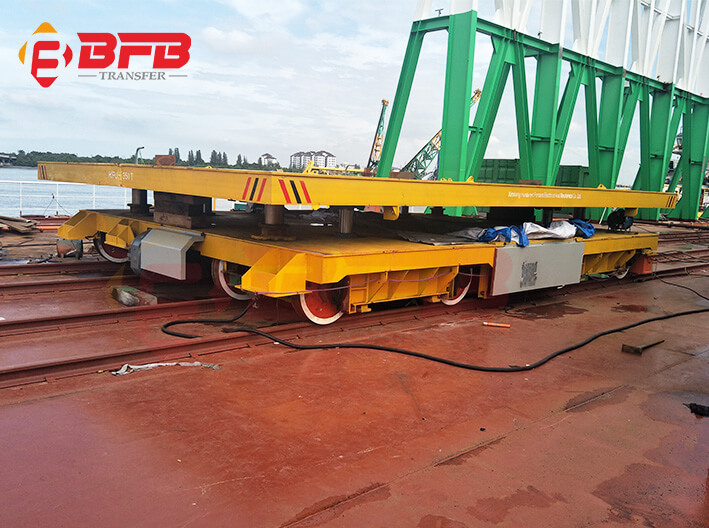

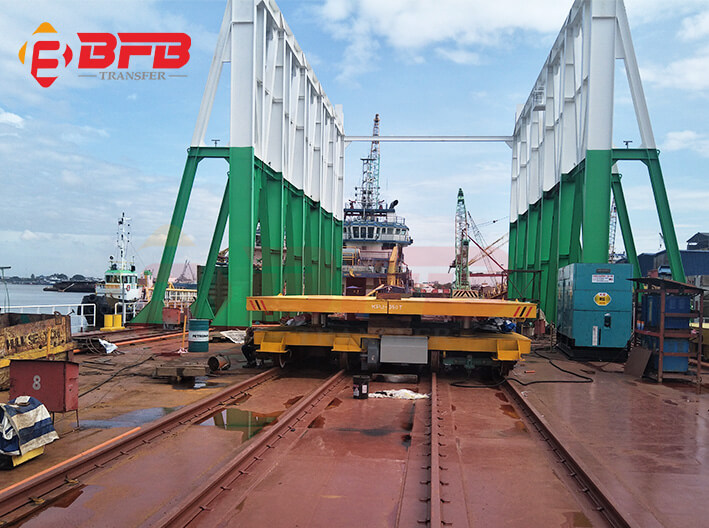

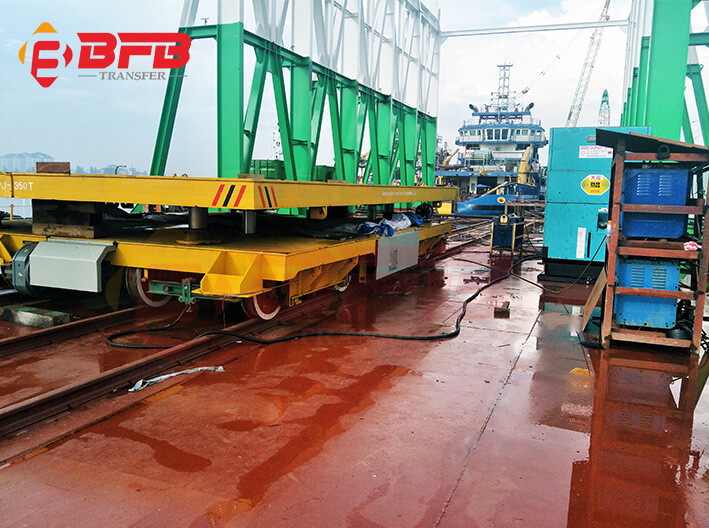

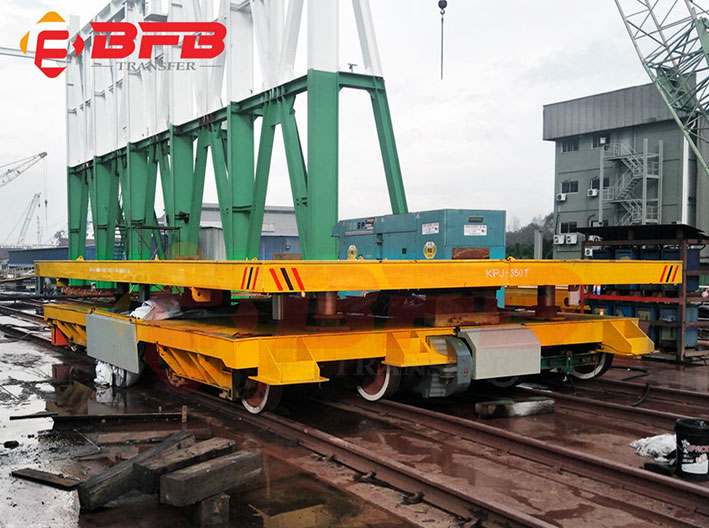

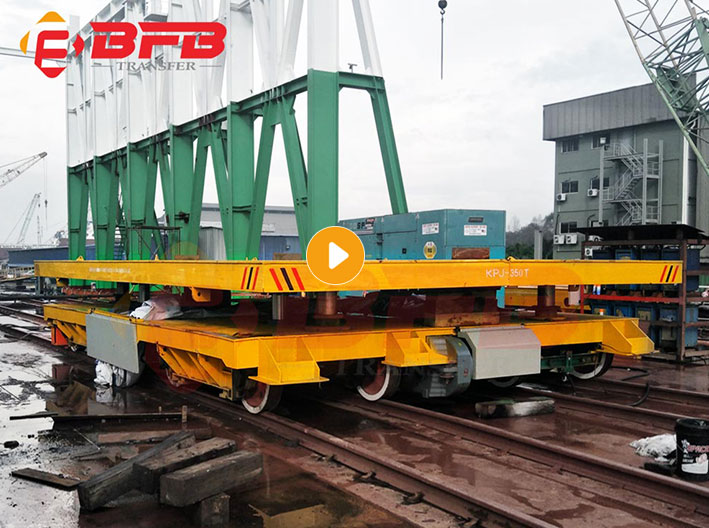

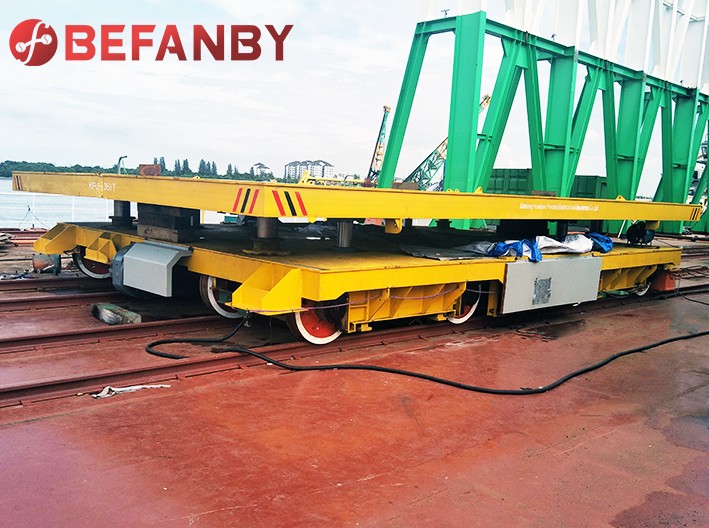

3 sets transfer carts has been exported Malaysia, which is mainly for transporting concrete block on the deck of a floating boat, the lifting system was installed on the cart as per customers’ using requirement.
- OEM: Support
- Vulnerable Parts: Give as gifts
- Warranty: 2 Years
- Load Capacity: 1-1500 Tons
3 sets transfer carts has been exported Malaysia, which is mainly for transporting concrete block on the deck of a floating boat, the lifting system was installed on the cart as per customers’ using requirement. the large capacity transfer cart also is our patented product. And our after sale service team has gone Malaysia to debugging well.
1.Support One-Stop Solution
2.Customized Solution On Request
3.Load Capacity reach to 1-1,500 tons can be customized on request.
4.Customized Power source
5. Safe bearing factor reach to 150%
6. All transfer cart with safety control system.
7. Stout steel frame.(adopt the box girder structure)
8. Free provide customized handling solution
9. Automated operation and transportation system are support
10. DC & AC motor supported
11. Support Installed on customers' site
| Technical Parameter Of Transfer Cart On Port | ||
| Model | KPJ | Remark |
| QTY | 3 SETS | |
| Application | Transport concrete block on the deck of a floating boat | |
| Load Capacity (T) | 350 | Custom Capacity over 1,500T |
| Table Size (mm) | 9000(L)*6000(W)*1200(H) | Box Girder Structure |
| Lifting Height(mm) | 300 | |
| Rail Inner Gauge (mm) | 1500+2000+1500 | |
| Power Supply | Cable drum Power | |
| Motor Power(KW) | 4*18.5 | |
| Motor | AC Motor | Support Frequency Charger |
| Running Speed(m/min) | 0-20 | Adjusted Speed |
| Running Distance(m) | 70 | |
| Wheel Dia.(mm) | 700 | ZG55 Material |
| Power | AC380V，50HZ | |
| Recommend Rail | QU120 | |
| Color | Yellow | Customized Color |
| Operation Type | Hand Pendant + Remote Control | |
| Special Function |
1. lifting system 2. Customized rail clamping device 3. Run On the Four Rails |
|
