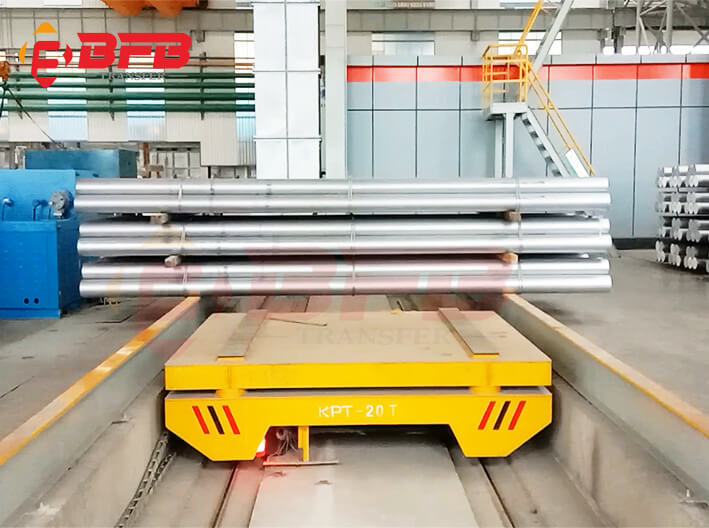

Transfer Cart For Pipe Transport
Transfer cart for pipe transport also is a common workshop handling equipment, which also customized according to customers’ demand, in order to avoid the pipe slipping from the transfer cart, the V frame or U frame also can be fixed on the cart to protect the safety.
- OEM: Support
- Vulnerable Parts: Give as gifts
- Warranty: 2 Years
- Certification: CE, SGS, ISO9001, SASO
Transfer cart for pipe transport also is a common workshop handling equipment, which also customized according to customers’ demand, in order to avoid the pipe slipping from the transfer cart, the V frame or U frame also can be fixed on the cart to protect the safety.
1.Support One-Stop Solution
2.Customized Solution On Request
3.Load Capacity reach to 1-1,000 tons can be customized on request.
4.Customized Power source
5. Safe bearing factor reach to 150%
6. All transfer cart with safety control system.
7. Stout steel frame.(adopt the box girder structure)
8. Free provide customized handling solution
9. Automated operation and transportation system are support
10. DC & AC motor supported
11. Support Installed on customers’ site
| Technical Parameter Of Transfer Cart For Pipe Transport | ||
| Model | KPT | Remark |
| QTY | 1 SET | |
| Application | Pipe | |
| Load Capacity (T) | 20 | Custom Capacity over 1,000T |
| Table Size (mm) | 2400(L)*3000(W)*800(H) | Box Girder Structure |
| Lifting Height(mm) | 100 | |
| Rail Inner Gauge (mm) | 1949 | |
| Power Supply | Mobile cable Power | |
| Motor Power(KW) | 5.5 | |
| Motor | AC Motor | Support Frequency Charger |
| Running Speed(m/min) | 0-20 | Adjusted Speed |
| Running Distance(m) | 18 | |
| Wheel Dia.(mm) | 350 | ZG55 Material |
| Power | AC380V，50HZ | |
| Recommend Rail | P24 | |
| Color | Yellow | Customized Color |
| Operation Type | Hand Pendant + Remote Control | |
| Special Function |
1. lifting system 2. Running on the pit |
|
