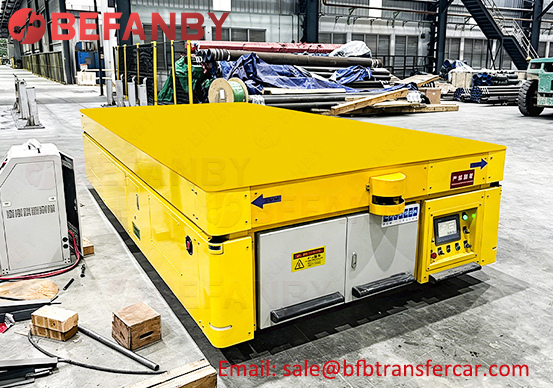

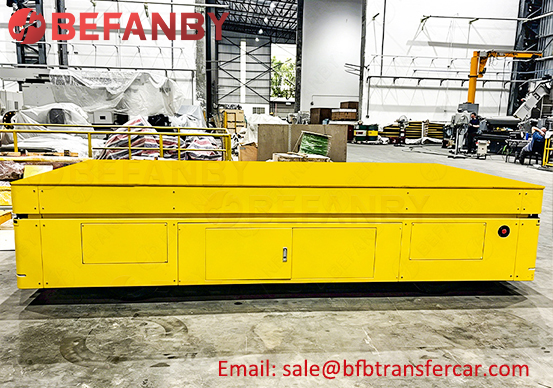

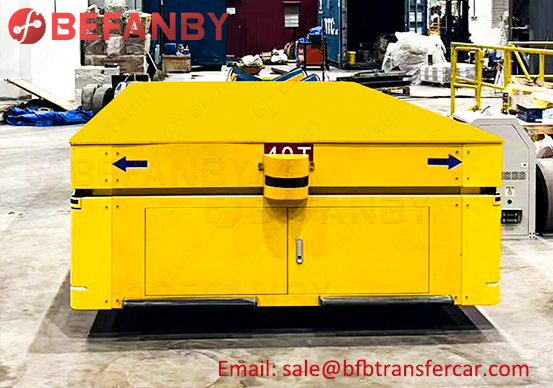

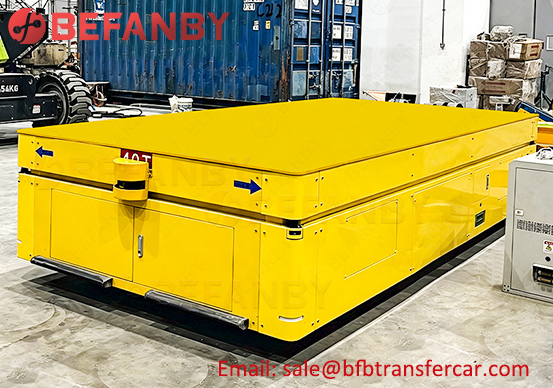

Custom 40Ton Automated Electric Transfer Cart For Workshop Operations
Project Name: Custom 40Ton Automated Electric Transfer Cart For Workshop Operations
Project Background:
The client is a heavy equipment manufacturer. Previously, the transfer of large workpieces within the workshop relied on traditional forklifts and overhead cranes. This process was cumbersome, required multi-person coordination, suffered from poor alignment precision, and posed safety risks due to the shared movement of personnel and heavy-load equipment. To achieve automated heavy-workpiece transfer, reduce labor costs, and enhance operational safety, the client selected BEFANBY—after a thorough comparison of options—to custom-build a 40-ton automated electric transfer cart for transferring heavy materials between workstations.
Solution:
Addressing the client's three core requirements—automated transfer, heavy-load capacity, and safety protection—the BEFANBY team collaborated closely with the client to refine details and finalize the transfer cart configuration:
1. Heavy-Duty Structural Design
The cart features a fully welded frame with thickened box-girder main beams. This design enhances structural rigidity, ensures reliable continuous operation at a 40-ton load, offers high impact resistance and deformation stability, and is ideally suited for heavy-workpiece transfer.
2. Customized Automated Navigation System
Equipped with a custom navigation module, the transfer cart travels automatically along preset routes and performs precise workstation alignment. It also retains a wireless remote-control mode, allowing operators to take manual control remotely, thereby combining automated operation with manual emergency handling.
3. Specialized Safety Protection
The transfer cart is equipped with automatic stop sensors that halt movement immediately upon detecting personnel or obstacles, preventing collisions. Additional safety features include an emergency stop button, audible and visual alarms, and anti-collision buffers, providing multi-layered protection to elevate workshop safety standards.
4. Power and Detail Optimization
Powered by a battery, the vehicle operates without trailing cables, making it suitable for long-distance transfers within the workshop. Mounting interfaces are integrated into the chassis, allowing for the addition of workpiece-specific positioning fixtures. Key parameters—such as vehicle dimensions, navigation paths, and sensor sensitivity—can be adjusted post-installation to meet evolving needs.
Technical Specifications:
Model: AGV
Quantity: 1 unit
Load Capacity: 40 tons
Platform Dimensions: 5500 * 3400 * 750 mm
Travel Speed: 0–30 m/min
Customization: Dimensions/Color
Customer Feedback:
Communication regarding customization with BEFANBY was efficient and seamless. Their engineers fully understood the safety challenges associated with the mixed traffic of personnel and machinery in our workshop. The 40-ton automated transfer cart operates reliably, and the automated transfer solution has effectively helped the factory reduce costs and improve efficiency.
Contact Us:
BEFANBY offers custom-engineered automated electric transfer carts with load capacities ranging from 1 to 50 tons. Features include autonomous navigation, remote control operation, and optional safety protection devices. These transfer carts are widely used for heavy-load material transfer in workshops manufacturing heavy industrial equipment, steel structures, and large components. Contact us to learn more about our customized material handling solutions!
