30Ton Rail Mounted Flatbed Cart For Outdoor Painting
Project Name: 30Ton Rail Mounted Flatbed Cart for Outdoor Painting
Project Background:
In modern industrial production, the handling of heavy materials remains a significant challenge for large enterprises. Traditional handling equipment often fails to meet the demands for efficiency, safety, and precision, particularly in challenging working environments like paint booths and in complex outdoor environments. A major European company faced this challenge and sought help from BEFANBY, seeking a customized, specialized device to address their handling challenges.
Solution:

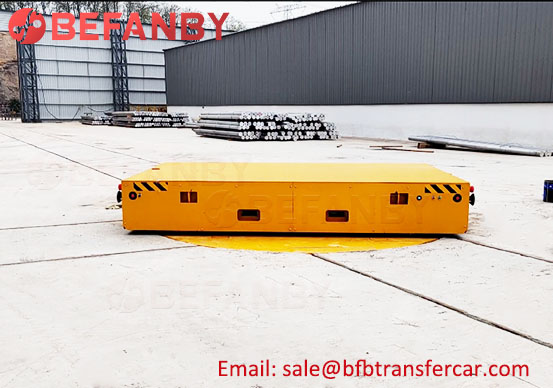

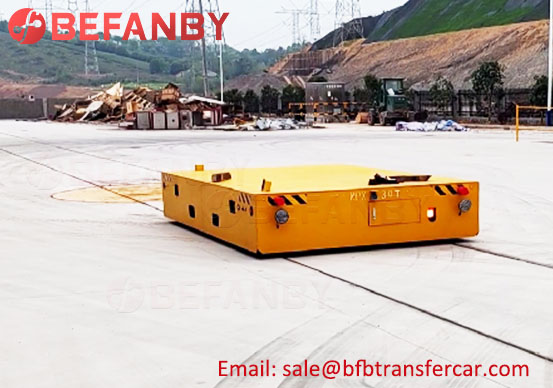

BEFANBY developed a 30-ton, battery-powered rail-mounted flatbed cart with a turntable mechanism, perfectly addressing the customer's challenges. The customer required a trolley suitable not only for use in the paint booth but also for outdoor environments, placing high demands on the equipment's corrosion resistance and adaptability. Furthermore, the 30-ton load capacity and the ability to incorporate a rotating mechanism for material transfer were key design considerations. The rail-mounted flatbed cart is battery-powered, suitable for use in flammable and explosive atmospheres and in outdoor environments without a fixed power source. This rail-mounted flatbed cart is 3 meters wide and 1.6 meters long, with a track spacing of approximately 1.5 meters. The rails are constructed of 50 mm square steel, ensuring load-bearing capacity and stability. With an overall height of less than 0.6 meters, the cart can operate flexibly in low spaces, meeting the requirements of specialized environments such as paint booths.

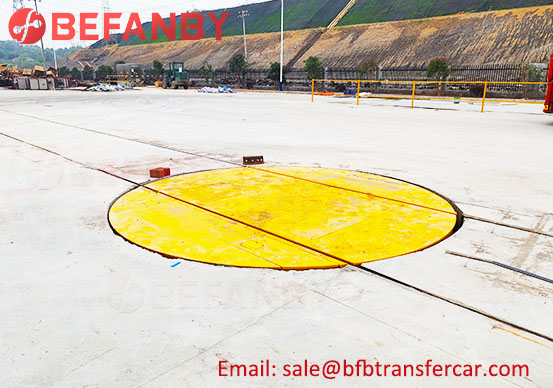

A key feature of this battery-powered rail-mounted flatbed cart is its rotating mechanism, enabling rapid material transfer. During the production process, materials often need to be transferred between different workstations. The rotating mechanism allows the transfer cart to turn and transfer materials without turning around, saving significant time and space and improving production efficiency.
Technical Parameters:
Model: KPX
Quantity: 1 unit
Load Capacity: 30 tons
Workbench Dimensions: 3000*1600*550mm
Operating Speed: 0-15m/min
Customizable: With turntable
Contact Us:
In the future, BEFANBY will continue to innovate and optimize its products and services, providing more businesses with efficient and intelligent logistics and transportation solutions. Welcome contact us for customized handling solutions.
