20Ton Outdoor AGV Solution Optimizes Logistics And Transportation
Project Name: 20ton outdoor AGV solution to optimize logistics and transportation
Project Requirements:
The customer wanted to know more about outdoor automated guided vehicles (AGVs) that they wanted to use to transport goods between buildings. The load requirement is 20 tons, and it needs to be resistant to sunlight, rain, and dusty environments, and can work outdoors. The outdoor AGV travels about 20.96 meters between outdoor buildings. Working frequency: at least 3-8 hours a day. The AGV will mainly run on outdoor concrete floors, with a height difference of about 0.5 meters between buildings. Since the track is easy to maintain, magnetic navigation or optical sensors are mainly selected. In addition, it must be equipped with omnidirectional wheels (Mecanum wheels) to enable flexible movement.
Solution:

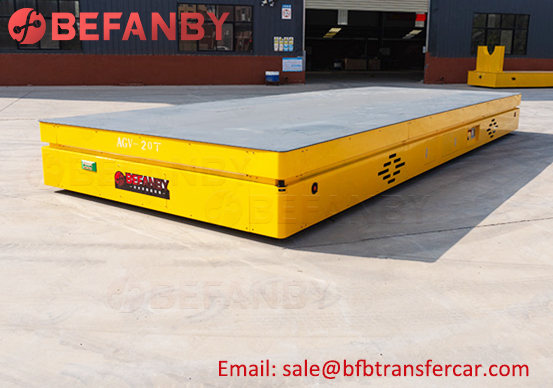

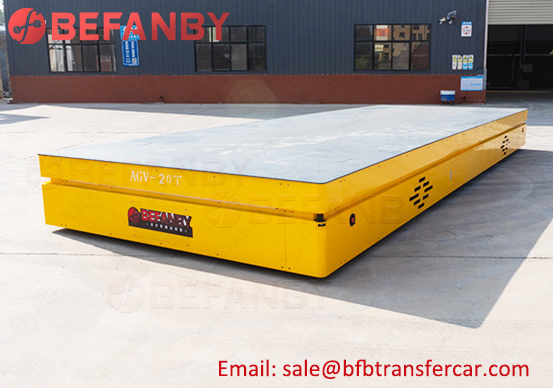

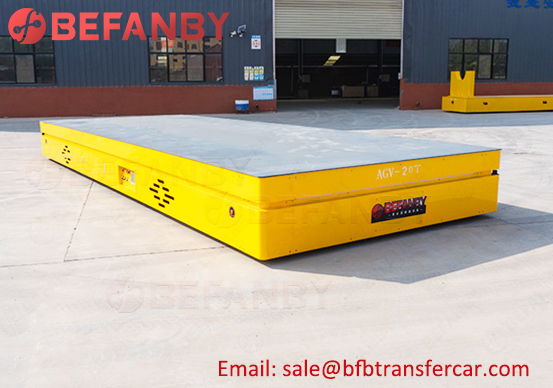

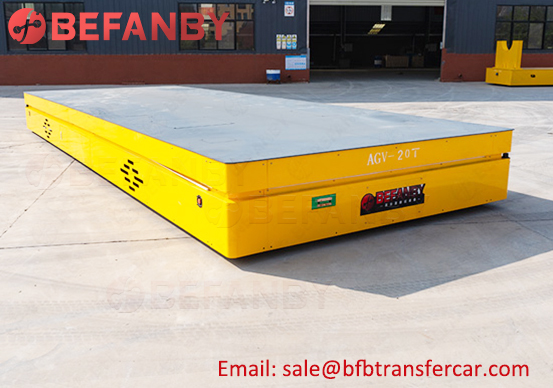

After understanding the customer's specific needs, we customized a 20-ton outdoor AGV for the customer to solve the customer's logistics and transportation troubles. This outdoor AGV meets the customer's load requirements for handling, is equipped with Mecanum wheels, and is efficient and flexible; magnetic strip navigation is selected, and the maintenance cost is low. It is equipped with an automatic stop device when encountering people to ensure the safety of the working process. Most importantly, our 20-ton outdoor AGV can meet the requirements of long-term work, with a battery life of at least 8 hours a day, which improves the efficiency of logistics and transportation.
Technical parameters:
Model: AGV
Quantity: 2 units
Load capacity: 20 tons
Workbench size: 5800*2550*700mm
Running speed: 0-15m/min
Wheel: Mecanum wheel
Advantages of 20-ton outdoor AGV:
1. Customized heavy-load design, taking into account the slope and stability of 20 tons of super load
2. Omnidirectional movement + automatic stop device when encountering people: Mecanum wheel realizes 360° flexible steering, and is equipped with an automatic stop device when encountering people to ensure safety.
3. Outdoor durability and low-maintenance navigation
Magnetic guide: Magnetic strip navigation, maintenance cost is reduced by 60%, and it is suitable for concrete floors.
